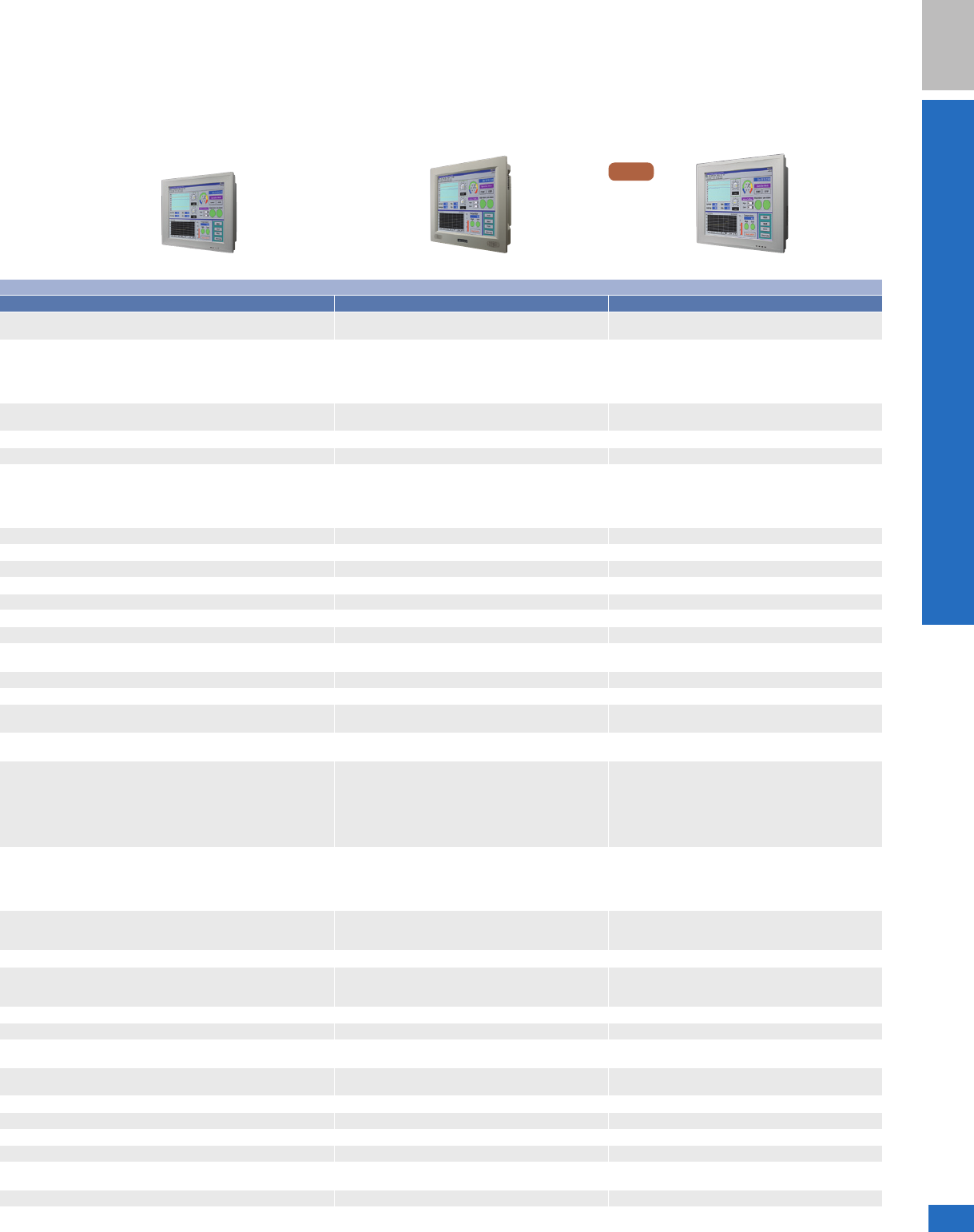

Multi-functional Panel PC Selection Guide

Selection Guide

Model Name

Multi-functional Panel Computer Multi-functional Panel Computer

PPC-125T PPC-157T PPC-6150 PPC-177T PPC-179T PPC-6170

CPU Board

PCM-8200 PCM-8200

MIO-5290

PCM-8207

PCM-8200 PCM-8203

MIO-5290

PCM-8207

Processor

Socket 478 Supports Intel Core 2 Duo

processor up to 2.16 GHz

Supports Socket 478 based Core 2 Duo

up to 2.16 GHz

3rd Gen Core i CPU

Celeron 847E 1.1 GHz

Celeron 1020E 2.2 GHz

Core i3-3120ME 2.4 GHz

Core i5-3610ME 2.7 GHz

Supports Socket 478 based Core 2 Duo up to 2.16

GHz

LGA775 Socket-based Intel Core 2 Duo Processor up

to 3.0 GHz

3rd Gen Core i CPU

Celeron 847E 1.1 GHz

Celeron 1020E 2.2 GHz

Core i3-3120ME 2.4 GHz

Core i5-3610ME 2.7 GHz

Memory

Size

512 MB ~ 4 GB DDR2 SDRAM

Supports up to 4 GB of 667 MHz DDR2

system memory

DDR3 (1600 MHz) / DDRL (1333 MHz),

supports up to 8 GB

Supports up to 4 GB of 667 MHz

DDR2 system memory

Supports up to 4 GB of 1333 MHz

DDR3 system memory

DDR3 (1600 MHz) / DDRL (1333 MHz),

supports up to 8 GB

Module Type

200-pin SODIMM x 2 SODIMM (socket x 2) 1 x 204-pin SODIMM SODIMM (socket x 2) 240-pin DIMM x 2 1 x 204-pin SODIMM

L2 Cache Memory

On-die 512 KB ~ 4 M On-die 512 KB ~ 4 M 2MB/3MB On-die 512 KB ~ 4 M On-die 512 KB ~ 4 M 2MB/3MB

Storage/Type

Supports 1 x internal CompactFlash Type ll

socket, 2.5" SATA HDD drive

Supports 1 x internal CompactFlash Type ll

socket, 2.5" SATA HDD drive

1 x 2.5" SATA bay Either one

- Second 2.5" SATA bay

(Intel RAID supported, optional)

- Slim type 8X or above DVD +/- RW

(optional)

Supports 1 x internal CompactFlash Type ll socket,

2.5" SATA HDD drive

Supports 1 x internal CFast Type II socket,

1 2.5" SATA HDD drive

1 x 2.5" SATA bay Either one

- Second 2.5" SATA bay

(Intel RAID supported, optional)

- Slim type 8X or above DVD +/- RW (optional)

Display

Size/Type

12.1" 15" Color TFT LCD 15" TFT LCD (LED Backlight) 17" Color TFT LCD 17" TFT LCD 17" TFT LCD (LED Backlight)

Max. Resolution

1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1280 x 1024

Max. Colors

262 K 262K 262K 16.7M 16.7 M 262K

Pixel Pitch (mm)

0.240 x 0.240 0.297 x 0.297 0.297 x 0.297 0.264 x 0.264 0.264 x 0.264 0.264 x 0.264

Brightness (cd/m

)

450 350 350 380 380 350

Viewing Angle

80°(left), 80°(right), 80°(up), 80°(down) 80°(left), 80°(right), 70°(up), 60°(down) 80°(left), 80°(right), 70°(up), 70°(down) 80°(left), 80°(right), 80°(up), 80°(down) 80°(left), 80°(right), 80°(up), 80°(down) 85°(left), 85°(right), 80°(up), 80°(down)

Brightness Control

Yes Yes Yes Yes Yes Yes

Simultaneous

Mode

Yes Yes Yes Yes Yes Yes

Backlight MTBF

50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs

VGA Chipset

945GME 945GME Intel 3rd Gen Core i CPU+QM77 945GME Intel Q45 Intel 3rd Gen Core i CPU+QM77

CD-ROM/Combo Drive

Optional extenal module for 1 x slim type

optical drive (optional SATA optical drive)

Optional 1 x Slim type optical drive bay

(optional SATA optional drive)

Optional 1 x Slim type optical drive bay

(optional SATA optional drive)

Optional 1 x Slim type optical drive bay

(optional SATA optional drive)

Optional SATA slim type optical drive

Optional 1 x Slim type optical drive bay

(optional SATA optional drive)

DVD-ROM, DVD+/- RW Drive

Option

Yes Yes Yes Yes Yes YES

I/O Ports

4 x COM ports

(3 x RS-232, 1 x RS-232/422/485)

6 x USB V2.0 ports, 1 x PS/2 mouse & K/B,

Mic-in/Line-in/ Line-out, 1 W speakers,

2 x Gigabit Ethernet ports, 1 D-SUB VGA

port

4 x COM ports

(3 x RS-232, 1 x RS-232/422/485),

4 x USB 2.0 ports, 1 x PS/2 mouse and

keyboard interface, MIC in/Line in/Line

out port, 1W speaker, 2 x Gigabit Ethernet

ports, 1 x D-SUB VGA port

4 x COM ports, 1 x isolated RS-232/422/485,

3 x RS232, 1 x GPIO/RS-232

(8 channels, TTL level); by pin header

3 x USB3.0 + 2 x USB2.0 ports

2 x Gigabit Ethernet, 1 x D-SUB VGA port

1 x HDMI, 1 x Line-out, 1 x Mic-in,

2 x 1W speaker

4 x COM ports (3 x RS-232, 1 x RS-232/422/485)

4 x USB 2.0 ports, 1 x PS/2 mouse and keyboard

interface, Mic-in/Line-in/Line-out port, 1 W speakers,

2 x Gigabit Ethernet ports, 1 x D-SUB VGA port

3 x serial ports: 2 x RS-232, 1 x RS-232/422/485,

6 x USB2.0 ports, Mic-in, Line-in, Line-out,

1 x D-SUB VGA port, 2 x Gigabit Ethernet ports

4 x COM ports, 1 x isolated RS-232/422/485,

3 x RS232, 1 x GPIO/RS-232 (8 channels, TTL level);

by pin header, 3 x USB3.0 + 2 x USB2.0 ports,

2 x Gigabit Ethernet, 1 x D-SUB VGA port, 1 x HDMI

1 x Line-out, 1 x Mic-in, 2 x 1W speaker

Bus Expansion

1 x PCI-e Expansion Slot or 1 x PCI slot

(Both are available as options)

1 x Mini PCI Socket, 1 x Mini PCI-e socket

1 x PCI-e Expansion Slot

(PCI is available as option)

1 x Mini PCI Socket

1 x Mini PCI-e socket

Either:

- one PCI + one PCIe x1 (standard)

- one x PCIe x 4 (in the accessory box)

- two PCIe x 1 (optional)

- two PCI (optional)

1 x PCI-e Expansion Slot (PCI is available as option)

1 x Mini PCI Socket

1 x Mini PCI-e socket

1 x PCI + 1 x PCI-E through riser, 1 x Mini PCIe

Either:

- one PCI + one PCIe x1 (standard)

- one x PCIe x 4 (in the accessory box)

- two PCIe x 1 (optional)

- two PCI (optional)

Network (LAN)

2 x Gigabit Ethernet ports, Wake on

LAN, boot from LAN and LAN teaming

supported

2 x Gigabit Ethernet ports, Wake on

LAN, boot from LAN and LAN teaming

supported

2 x Gigabit Gigabit Ethernet connectors,

Intel AMT supported (GbE1: Intel 82579LM,

GbE2: Intel 82583V)

2 x Gigabit Ethernet ports, Wake on LAN, boot from

LAN and LAN teaming supported

2 x 10/100/1000 Mbps Ethernet

2 x Gigabit Gigabit Ethernet connectors, Intel AMT

supported (GbE1: Intel 82579LM, GbE2: Intel 82583V)

Power

Output Rating

150 W 150 W 150W 150 W 220 W 150W

Input Voltage

AC Model: 150 W

Input voltage: 100 ~ 240 V

, 50 ~ 60 Hz,

2 ~ 4 A

100 ~ 240 V

, 50 ~ 60 Hz, 2 ~ 4 A 100 ~ 240 V

, 50/60Hz, 4 ~ 2 A 100 ~ 240 V

, 50 ~ 60 Hz, 2 ~ 4 A 100 ~ 240 V

@ 50 ~ 60 Hz 100 ~ 240 V

, 50/60Hz, 4 ~ 2 A

Touchscreen

Technology

Resistive Resistive Resistive Resistive Resistive Resistive

Light Transmission

80% (Resistive) 80% (Resistive) 80% (Resistive) 80% (Resistive) 80% (Resistive) 80% (Resistive)

OS Support

Windows XPE/XP Pro, Vista Window XP/XPE/Vista

Win XPE / Win XP Pro / WES7 32 & 64 bit /

Windows 7 32 & 64 bit

Windows XPE/XP Pro, Vista, WES7 Windows XPE/XP Pro, Vista, WES7

Win XPE / Win XP Pro / WES7 32 & 64 bit / Windows 7

32 & 64 bit

Durability

(Touches)

35 million (Resistive) 35 million (Resistive) 35 million (Resistive) 35 million (Resistive) 35 million (Resistive) 35 million (Resistive)

Watchdog Timer

255 level 255 level 255 level 255 level 62 level, 1 ~ 62 seconds 255 level

Working Temperature

0 ~ 50°C (32 ~ 122°F) 0 ~ 50°C (32 ~ 122°F) 0 ~ 50°C (32 ~ 122°F) 0 ~ 50°C (32 ~ 122°F) 0 ~ 45°C (32 ~ 113°F) 0 ~ 50°C (32 ~ 122°F)

Front Panel Protection

IP65 compliant IP65 compliant IP65 compliant IP65 compliant IP65 compliant IP65 compliant

Certiﬁcation

CE, FCC, BSMI, CCC, UL, CB BSMI, CE, FCC Class B, CCC CE, FCC, BSMI, CCC, UL BSMI, CE, FCC Class B, CCC BSMI, VCCI, UL, CE, FCC, Class B, CCC CE, FCC, BSMI, CCC, UL

Dimensions (W x H x D)

376 x 285.55 x 100.95 mm

(14.80" x 11.24" x 3.97")

420 x 223.3 x 130.5 mm

(16.54" x 12.72" x 5.12")

395.5 x 316.8 x 105.5 mm

(15.6" x 12.5" x 4.15")

442 x 362 x 111.5 mm

(17.4" x 14.25" x 4.39")

446 x 382 x 149.3 mm

(17.56" x 15.04" x 5.88")

442.0 x 362.0 x 113.5 mm

(17.4" x 14.25" x 4.47")

Weight

5.8 kg (12.77 lb) 6 kg (13.22lb) 6.5 Kg (14.32lb) 7.6 kg (16.74 lb) 11.0 kg (27.94 lb) 7.5Kg (16.52lb)

Page

26 28 30 32 34 36
